Anthem MRX 540 8K

$1,614.99 $1,899.99

Anthem’s MRX 540 is a great way to bring premium audio to any home theater or media room.

Power and processing

  • 5-channel Class AB amplifier

    • rated at 100 watts per channel

  • Dolby® and DTS® surround sound decoding

    • Dolby Atmos® and DTS:X processing for use with in-ceiling or "height" speakers for more enveloping home theater sound

    • supports 5.1.2 Atmos setup with optional external power amp

  • IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources

  • ARC Genesis speaker calibration system helps fine-tune your system to best match your room's acoustics

    • requires installation of free ARC Genesis software on a Mac or PC prior to calibration

  • audiophile-grade 32-bit/768kHz DAC (digital to analog converter)

  • large front-panel display gives you easy-to-read status updates at a glance

Digital and streaming options

  • built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers

  • built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services

    • free future firmware update will include support for Spotify® and Roon

  • Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music® (via free future firmware update)

  • Google Chromecast for wireless music streaming from compatible devices


  • HDMI 2.0b audio/video switching: 7 in, 2 out

    • all HDMI connections support 4K/60Hz video

    • HDCP 2.2 technology ensures compatibility with Ultra HD sources and TVs

    • HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content

    • supports HDR10, Dolby Vision™, and HLG (Hybrid Log Gamma)

  • supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)

    • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

  • HDMI board is upgradeable to accommodate possible future hardware updates

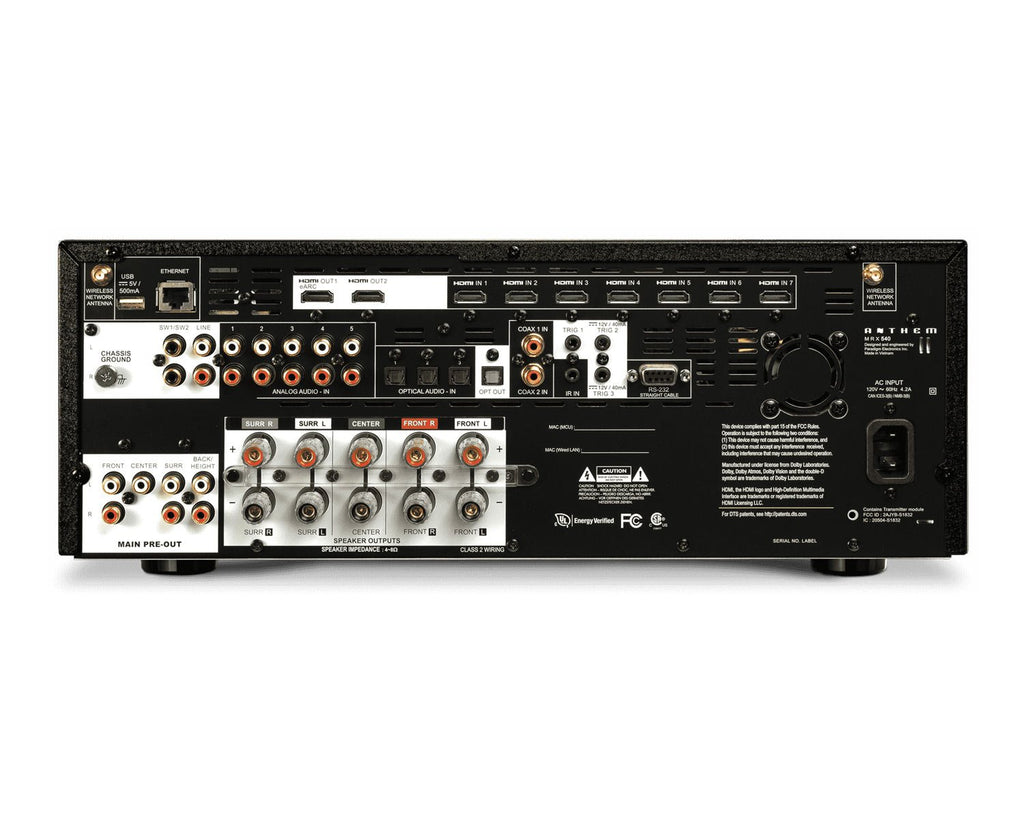

Other connections

  • digital audio inputs: 3 Toslink optical, 2 coaxial

  • 5 analog stereo RCA audio inputs

  • 7.2-channel RCA preamp outputs

  • outputs for 5 speakers (Front L/R, Center, Surround L/R)

  • full-sized front-panel headphone jack
