Product highlights
- 7-channel amplifier
- 5 channels rated at 140 watts (Class AB)
- 2 channels rated at 60 watts (Class D)
- Dolby® and DTS® surround sound decoding
- Dolby Atmos® and DTS:X processing for use with in-ceiling or "height" speakers for more enveloping home theater sound
- IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
- ARC Genesis speaker calibration system helps fine-tune your system to best match your room's acoustics
- requires installation of free ARC Genesis software on a Mac or PC prior to calibration
- audiophile-grade 32-bit/768kHz DAC (digital to analog converter)

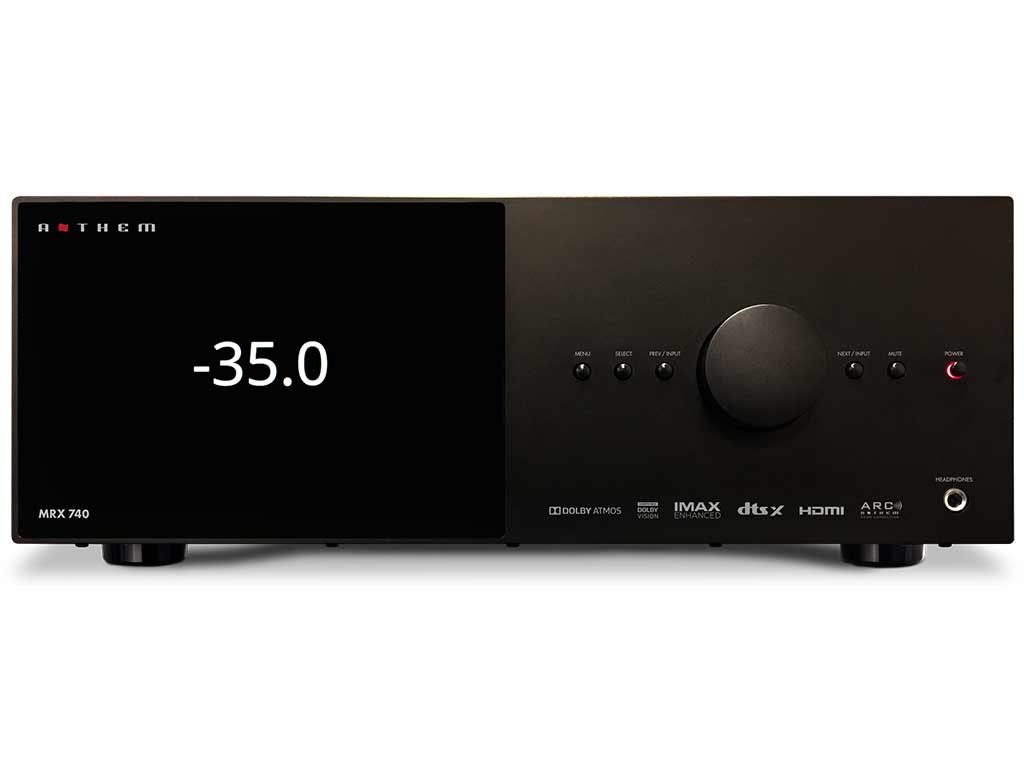

- large front-panel display gives you easy-to-read status updates at a glance
Digital and streaming options
- built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
- built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
- free future firmware update will include support for Spotify® and Roon
- Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music® (via free future firmware update)
- Google Chromecast for wireless music streaming from compatible devices
Multi-room audio/video
- dual-room/dual-source output
- amp assign function lets you use the surround back speaker outputs in different configurations like bi-amping the front speakers, or for use in Zone 2
- using powered 2nd-room output allows 5.2-channel sound in main room
- Zone 2 stereo preamp outputs for use with an optional external amplifier
- Zone 2 HDMI output
HDMI
- HDMI 2.0b audio/video switching: 7 in, 3 out
- all HDMI connections support 4K/60Hz video
- HDCP 2.2 technology ensures compatibility with Ultra HD sources and TVs
- HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
- supports HDR10, Dolby Vision™, and HLG (Hybrid Log Gamma)
- supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
- eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
- HDMI board is upgradeable to accommodate possible future hardware updates

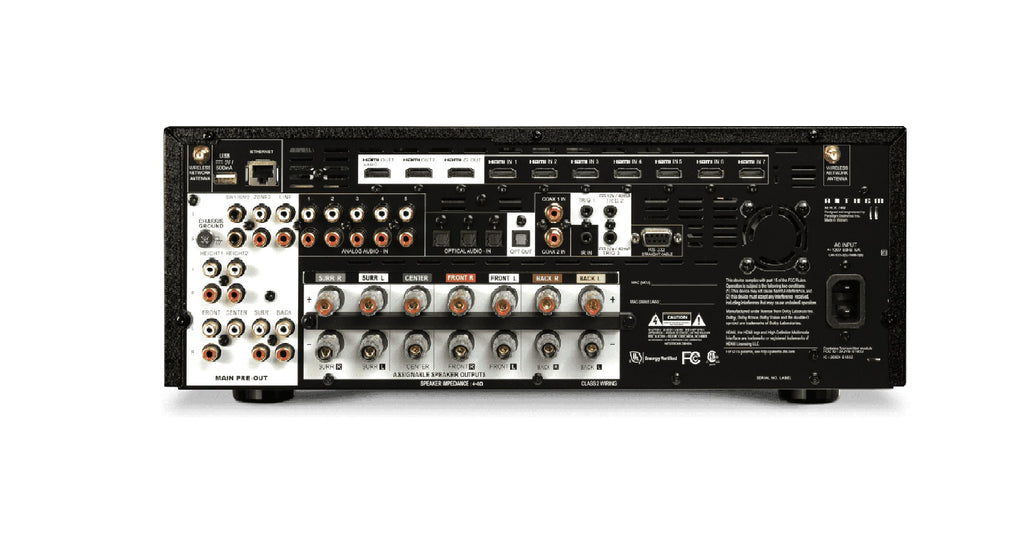

Other connections
- digital audio inputs: 3 Toslink optical, 2 coaxial
- 5 analog stereo RCA audio inputs
- 11.2-channel RCA preamp outputs
- outputs for 7 speakers (Front L/R, Center, Surround L/R, Surround Back L/R)
- full-sized front-panel headphone jack
